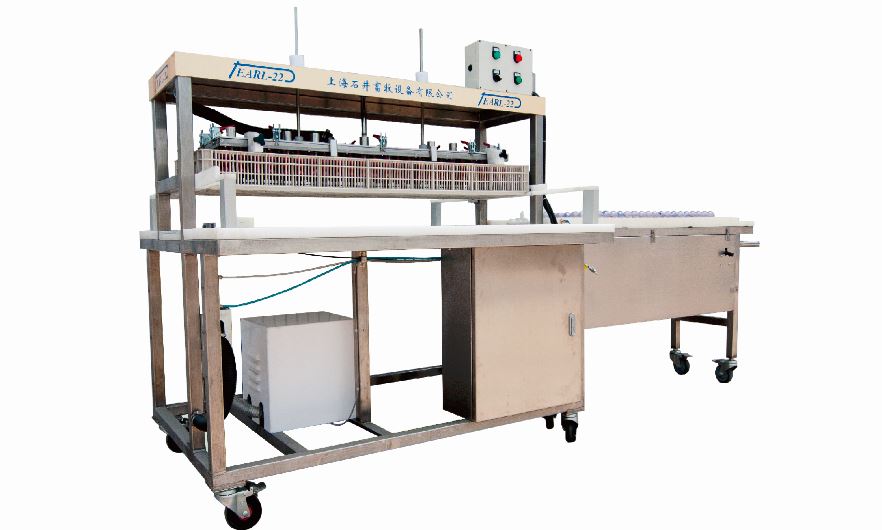

Egg Unload Robotic System | ||||
Capacity | 22000Egg/h | |||
Power Source | 1φ 220V | |||
Power Capacity | Fan | 1×10W | ||
Halogen Lamp | 4×150W | |||
Blower | 1×750W | |||
Vacuum Cup | 36Egg tray | 144Pcs | ||
42Egg tray | 168Pcs | |||
Dimensions (mm) | Candling Machine | 1,511×470×1,279 | ||
Transferring Machine | 1,436×1,154×1,279 | |||
Material | Stainless Steel | SUS304 |
Quick candling and transfer machine is very easy to operate even for ordinary worker. After the candling the operator can double check the accuracy of the candling by supplementary candling lamp. The candling machine is small and portable. It is light and easy to move. The table is approximately a meter high making it easy for the workers to operate. |
Egg Candling Table Place egg trays with eggs on the candling table. | Switch for Candling By turning on the swith, the shutter of the candling table will open and light will shine through the eggs exposing the infertile eggs. | Candling Once the infertile eggs are expose, the workers can remove the infertile eggs manually. |
Supplementary Candling This auxillary candling apparatus will be used to check those doubtful eggs to insure accuracy in the candling process.。 | Eggs Removal Vacuum cups move up and down but the eggs are safe. | Eggs Transfer Using rubber cup with vacuum pump the eggs are lift up and transfered from the egg trays to the hatcher basket. |
Egg Tray Removal After the eggs are transfered,the egg trays are removed by the workers. | Vacuum cups |
